What are the key features of the TOP253PN?

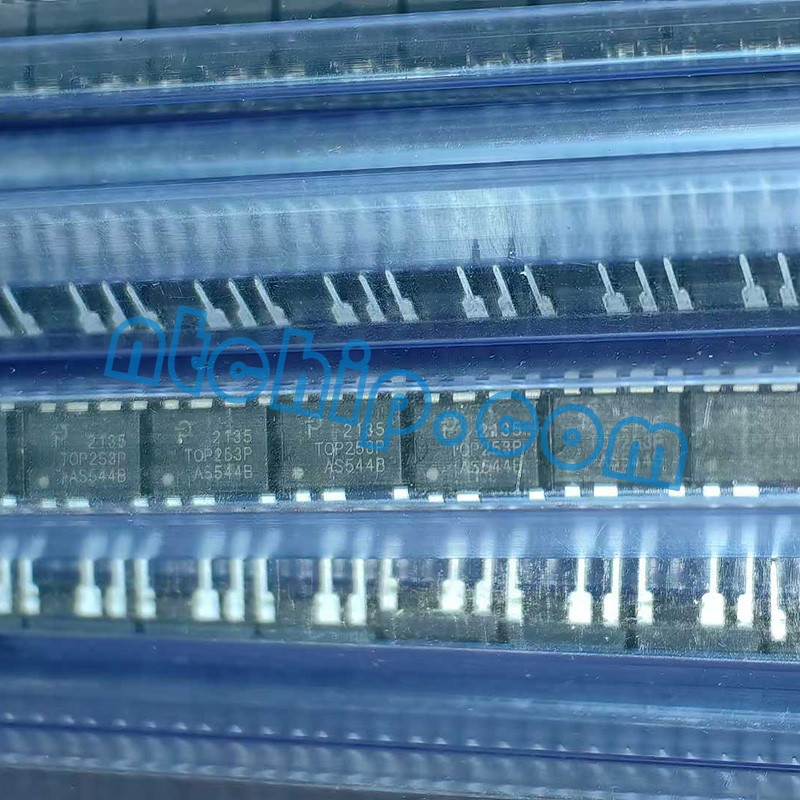

The TOP253PN is an integrated offline flyback converter IC that combines a high-voltage power MOSFET with dedicated control circuitry in an 8-pin PDIP package. It operates at a fixed 66 kHz switching frequency and incorporates built-in protections such as overvoltage, overcurrent, and thermal shutdown. Its integrated design reduces external component count and simplifies low-power AC-DC power supply designs.
What is the TOP253PN used for?
This converter is commonly used in offline power supplies for consumer and industrial electronics where a compact, efficient, and cost-effective AC-DC solution is needed. Typical applications include adapters, chargers, auxiliary power feeds for larger systems, and control or monitoring circuits that require regulated low-voltage DC from mains power.
Are there alternative or equivalent parts?
Yes. Similar integrated flyback controller/converter ICs from Power Integrations include the TOP246, TOP247, and TOPSwitch-GX series, which offer different power levels, package types, or feature sets. Other manufacturers such as STMicroelectronics (VIPer series), ON Semiconductor (NCP series), and Infineon (ICE2xxx series) offer comparable offline switcher ICs. When considering alternatives, it’s important to match input voltage, output power capability, switching frequency, protections, and package compatibility to your specific design requirements.
