Phoenix Contact 1844278

Name: 1844278
Brand: Phoenix Contact
SKU: 1844278
Rating: 5.0 (1 reviews)

Manufacturer Part Number :	1844278
Manufacturer :	Phoenix Contact
Description :	TERM BLOCK HDR 8POS 3.50MM
Datasheet :	1844278.PDF
EDA / CAD Models :	1844278 by SnapEDA
Stock Condition :	In Stock 5000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Phoenix Contact 1844278

In Stock: 5000 Qty:

RFQ Now Add to RFQ list

Phoenix Contact’s 1844278 PCB header is a reliable and versatile component designed for seamless integration into electronic systems. It features 8 positions with a nominal current capacity of 8 A and a rated voltage of 160 V, making it suitable for a variety of applications. With a compact green design, the header supports a nominal cross-section of 1.5 mm² and is compatible with the COMBICON MC 1.5 plug-in system. Its linear pinning and 3.5 mm pitch ensure easy installation, while the solder pin length of 3.4 mm provides secure and stable connections. The header is built for wave soldering, offering durability and reliable performance in professional setups.

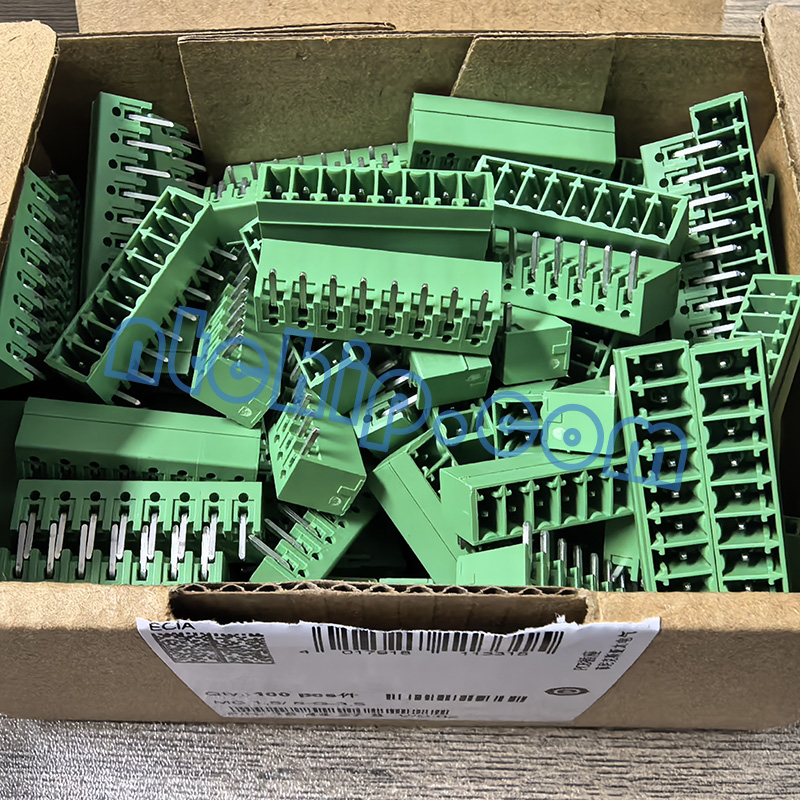

Phoenix Contact 1844278 chip

Belonging to the MC 1.5/..-G product range, this PCB header is packed in cardboard and aligns with standard pin connector patterns. It does not include locking or mounting features, ensuring simplicity and straightforward integration. This component is ideal for creating compact circuit designs without compromising on electrical performance.

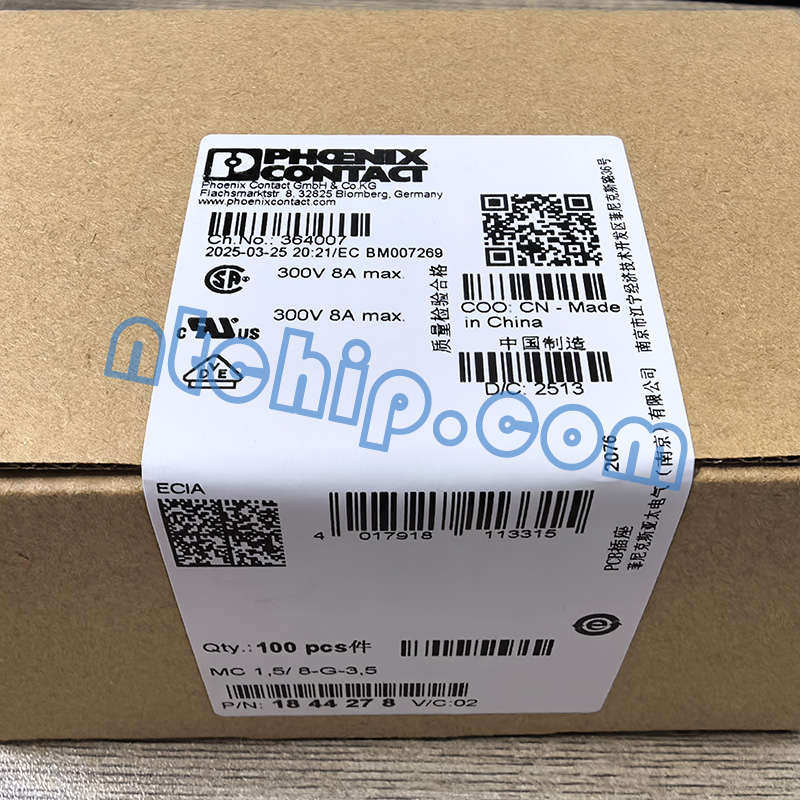

Phoenix Contact 1844278 package label

Nantian Electronics stocks large quantities of the 1844278 model and provides full technical documentation, including datasheets and pin diagrams, for your convenience. Contact us today to inquire about pricing or place an order.

Type	Description
Category	Connectors, Interconnects Terminal BlocksHeaders, Plugs and Sockets
Manufacturer	Phoenix Contact
Series	COMBICON MC
Packaging	Bulk
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	12A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Green
Operating Temperature	-
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	-
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.134" (3.40mm)
Insulation Height	0.285" (7.25mm)
