onsemi MMBF170LT1G

Manufacturer Part Number :	MMBF170LT1G
Manufacturer :	onsemi
Description :	MOSFET N-CH 60V 500MA
Package :	SOT23-3
Datasheet :	MMBF170LT1G.PDF
EDA / CAD Models :	MMBF170LT1G by SnapEDA
Base Product Number :	MMBF170
Stock Condition :	In Stock 166300, New Original

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Pricing

*All prices are in USD

Qty	Unit Price	Ext Price
1	$0.0457	$0.0457
50	$0.0411	$2.0550
100	$0.0370	$3.7000
500	$0.0333	$16.6500
1000	$0.0300	$30.0000

In Stock 166300 PCS

Subtotal : $0.000

Add to RFQ List Buy Now

*Products eligible for online ordering ship within 1-2 business days,please contact us for exact shipping times.

onsemi MMBF170LT1G

In Stock: 166300 Qty:

Unit Price: $

Ext Price: $

Add to Cart Buy Now RFQ Now Add to RFQ list

The MMBF170LT1G from onsemi is a compact N-channel MOSFET designed for low-power switching and amplification applications. With a drain-source voltage rating of 60 V and a continuous drain current of up to 500 mA, it provides reliable performance in small-signal circuits. Its low power dissipation and efficient switching characteristics make it suitable for designs where space and energy efficiency are important. Packaged in a small SOT-23 form factor, it is ideal for high-density PCB layouts.

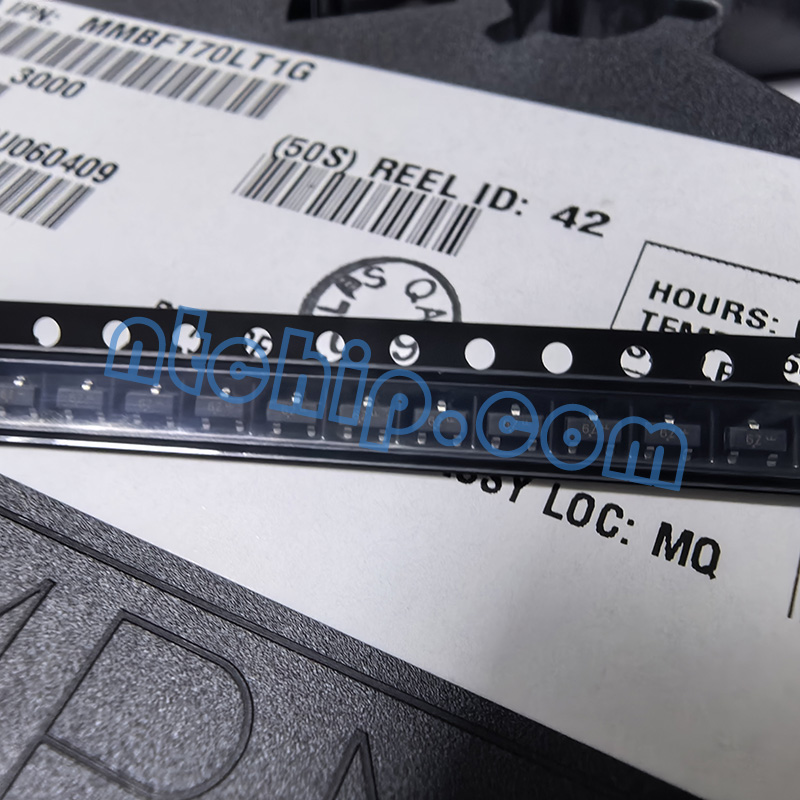

onsemi MMBF170LT1G diode part

This device is commonly used in signal switching, low-current load control, and general-purpose analog and digital circuits in consumer electronics and industrial equipment. It also offers automotive-qualified options under the NVBF prefix, meeting AEC-Q101 standards for enhanced reliability in automotive environments.

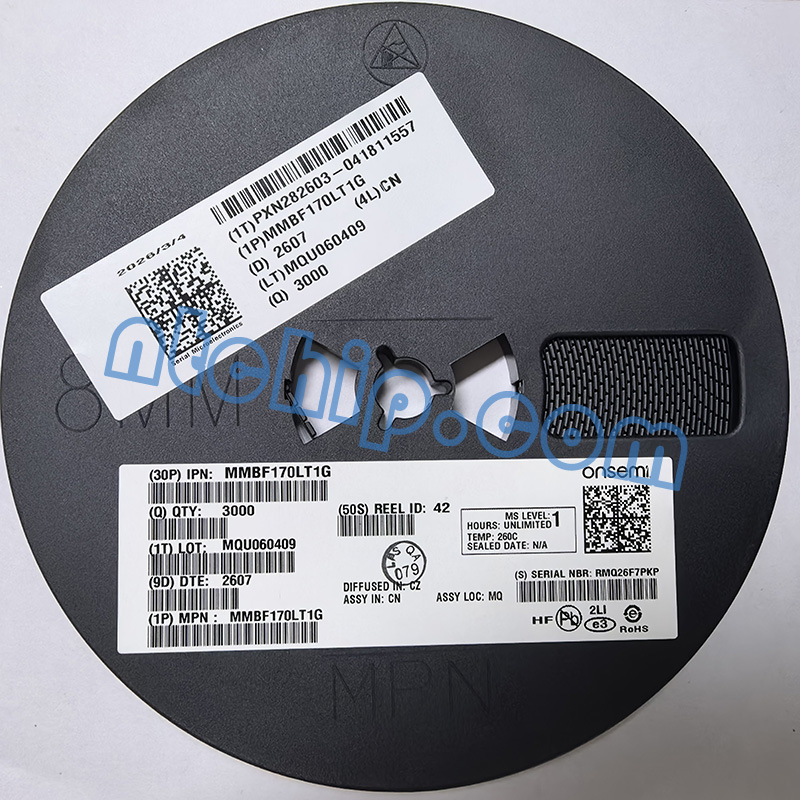

onsemi MMBF170LT1G original reel label

Nantian Electronics, as a professional onsemi distributor, keeps MMBF170LT1G in stock and provides datasheets and technical support, welcoming inquiries for competitive pricing and orders.

Type	Description
Category	Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single
Mfr	onsemi
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	225mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Base Product Number	MMBF170

What are its key features?

N-channel MOSFET with 60V drain-source voltage, up to 500mA current capability, low power dissipation (225mW), compact SOT-23 package, good switching performance, and optional automotive-qualified versions (AEC-Q101).

What is it used for?

Used in low-power switching, signal control, load driving, and general-purpose amplification in consumer electronics, industrial circuits, and embedded systems.

Are there alternative parts?

Yes, alternatives include similar small-signal MOSFETs such as 2N7002, BSS138, and equivalents from onsemi, Vishay, Nexperia, and Diodes Incorporated with comparable voltage and current ratings.
