ON Semiconductor MC100LVEP111FARG

The MC100LVEP111FARG from ON Semiconductor is a high-performance clock distribution driver, designed to manage clock signals within electronic systems. This component is particularly useful in applications requiring precise clock distribution and timing, such as in high-speed communication systems. It operates with a supply voltage range from 2.375 V to 3.8 V, accommodating various power systems and ensuring flexibility in usage.

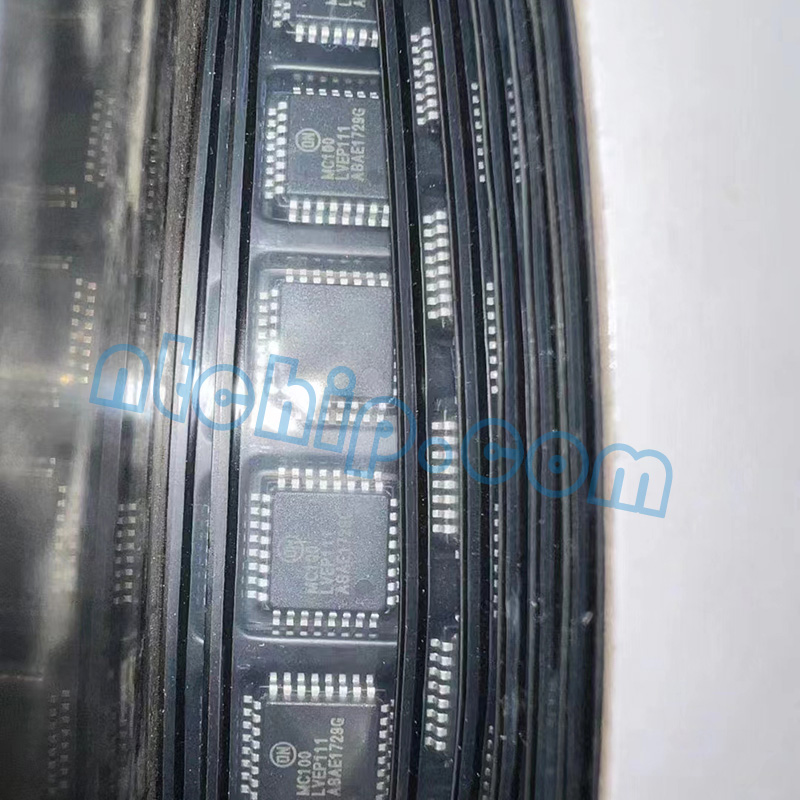

MC100LVEP111FARG Physical Picture

The device supports ECL and PECL output types, which are essential for high-speed digital signaling, providing robust and reliable performance. The MC100LVEP111FARG is housed in an LQFP-32 package, making it suitable for surface mount technology (SMT) and fitting well into compact circuit designs. It operates efficiently across a temperature range from -40°C to +85°C, ensuring stability and functionality in diverse operating environments.

Features

• 85 ps Typical Device−to−Device Skew

• 20 ps Typical Output−to−Output Skew • Jitter Less than 1 ps RMS

• Additive RMS Phase Jitter: 60 fs @ 156.25 MHz, Typ.

• Maximum Frequency > 3 GHz Typical • VBB Output

• 430 ps Typical Propagation Delay

• The 100 Series Contains Temperature Compensation

• PECL and HSTL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V

• NECL Mode Operating Range: VCC = 0 V with VEE = −2.375 V to −3.8 V

• Open Input Default State

• LVDS Input Compatible

• Fully Compatible with MC100EP111

• These are Pb−Free Devices

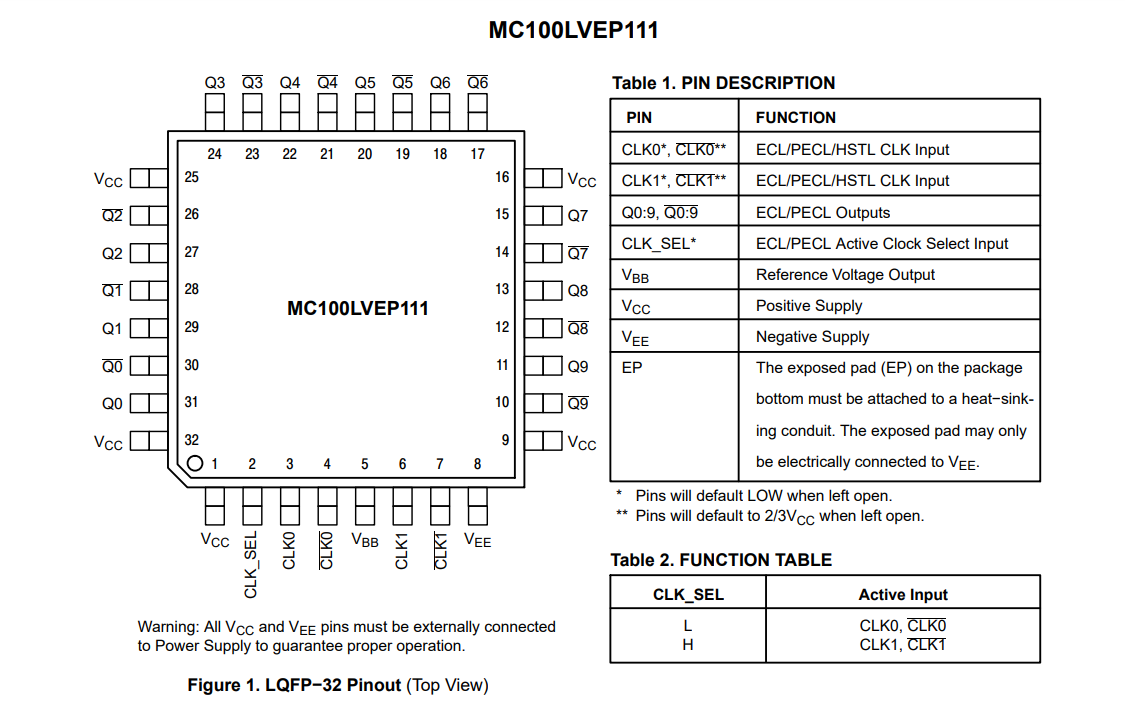

MC100LVEP111FARG Pinout

The pin configuration information of MC100LVEP111FARG is as follows:

Pin Configuration
