The MC20XS4200BFK, created by NXP Semiconductors, is an advanced automotive-grade integrated circuit. It features two fully-protected high side switches, each capable of handling a steady-state current up to 3.0A per channel. A key aspect to highlight is its superior protection and safety features – it incorporates overcurrent, short-circuit, as well as overtemperature protection with programmable autoretry functions. Additionally, its ability to accurately sense temperature and current levels helps ensure stable operation.
Flexibility is yet another of its virtues, with individually programmable internal/external PWM clock signals, plus separate modes for handling overcurrent in bulbs and DC motors. The device also includes OpenLoad detection in both OFF and ON states, even working with LED applications. A versatile operating voltage range from 6.0 up to 58V, and a 16-bit SPI port compatible with both 3.3V and 5.0V for device control, configuration, and diagnostics round up the impressive profile of the MC20XS4200BFK.

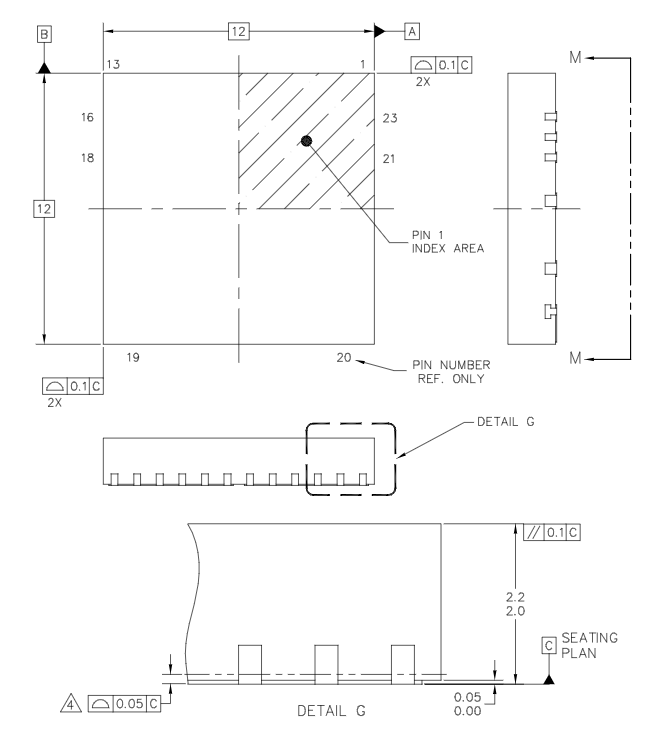

MC20XS4200BFK Package Dimensions:
As an experienced NXP Semiconductor distributor, Nantian Electronics takes an extra mile to add value for its clientele. They hold a substantial stock of the MC20XS4200BFK and facilitate access to a comprehensive set of supporting information about it. This includes parameters, Datasheet PDFs, and pin diagram instructions for this standout product, all available for download.
