Mornsun B0505LS-1WR3

Name: B0505LS-1WR3
Brand: Mornsun
SKU: B0505LS-1WR3
Price: 0.923 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Manufacturer Part Number :	B0505LS-1WR3
Manufacturer :	Mornsun
Description :	DC DC CONVERTER 5V 1W
Datasheet :	B0505LS-1WR3.PDF
EDA / CAD Models :	B0505LS-1WR3 by SnapEDA
Stock Condition :	In Stock 16000, New Original

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Pricing

*All prices are in USD

Qty	Unit Price	Ext Price
1	$0.9230	$0.9230
50	$0.8307	$41.5350
100	$0.7476	$74.7600
500	$0.6729	$336.4500
1000	$0.6056	$605.6000

In Stock 16000 PCS

Subtotal : $0.000

Add to RFQ List Buy Now

*Products eligible for online ordering ship within 1-2 business days,please contact us for exact shipping times.

Mornsun B0505LS-1WR3

In Stock: 16000 Qty:

Unit Price: $

Ext Price: $

Add to Cart Buy Now RFQ Now Add to RFQ list

The B0505LS-1WR3 from Mornsun is a compact isolated DC-DC converter designed to provide stable 5V output with up to 200mA load current from a 4.5V to 5.5V input range. Engineered for efficiency and reliability, it features continuous short-circuit protection, low no-load input current of just 8mA, and a high efficiency rating of up to 85%. With an isolation test voltage of 1.5kVDC and a wide operating temperature range from -40℃ to +105℃, this module ensures dependable performance in demanding industrial and embedded applications.

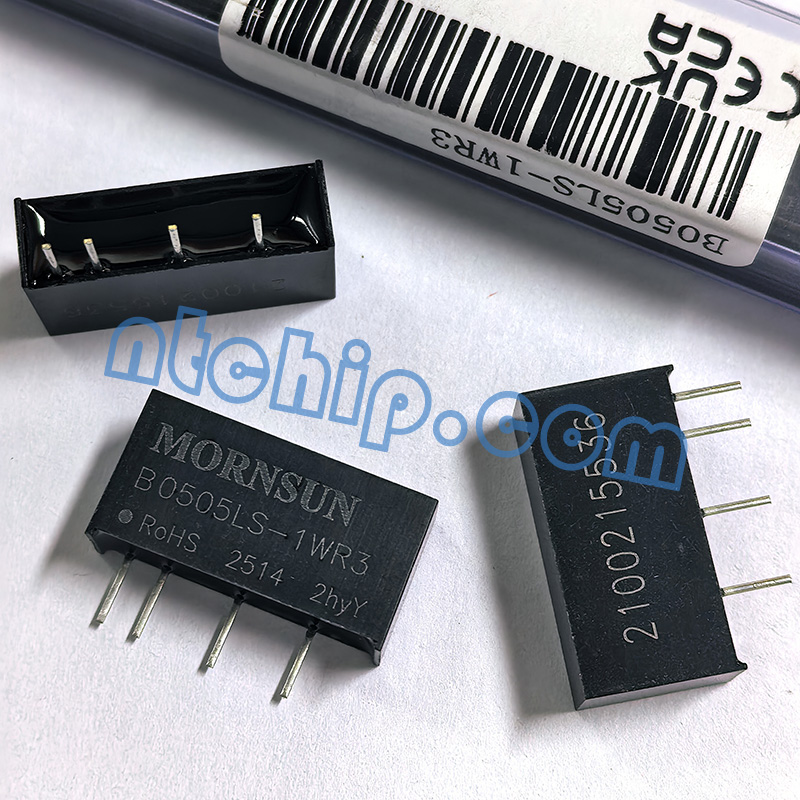

Mornsun B0505LS-1WR3 DC DC converter part

Nantian Electronics, as a professional distributor of Mornsun products, offers the B0505LS-1WR3 readily in stock. We provide complete product parameters, datasheets (PDF), and pin diagram instructions to support integration into your designs. For purchasing needs, please contact us for competitive pricing and professional service. Inquiries and orders are always welcome.

Mornsun B0505LS-1WR3 original package label

Type	Description
Category	Power Supplies - Board Mount DC DC Converters
Manufacturer	Mornsun America, LLC
Series	B_LS-1WR3 (1W)
Packaging	Tube
Part Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	-
Operating Temperature	-40°C ~ 105°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus
Base Product Number	-
