Introduction to the Mitsubishi CM75TU-24F Module
The Mitsubishi CM75TU-24F is a high-efficiency IGBT (Insulated Gate Bipolar Transistor) module that is part of the renowned F Series. It is designed to handle high power and high voltage applications with ease, making it an ideal choice for a variety of industrial applications. This module stands out due to its robust design, which includes a trench gate IGBT technology that ensures optimal performance and energy efficiency. With a DC collector current and continuous collector current rating of 75A, and a collector-emitter saturation voltage of 1.2kV, this product is engineered for reliability and longevity.
Mitsubishi is the manufacturer of the CM75TU-24F, which is available in stock at Nantian. The reference price for CM75TU-24F can be found by referring to Mitsubishi or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the CM75TU-24F datasheet PDF and pin diagram description that are available for download.

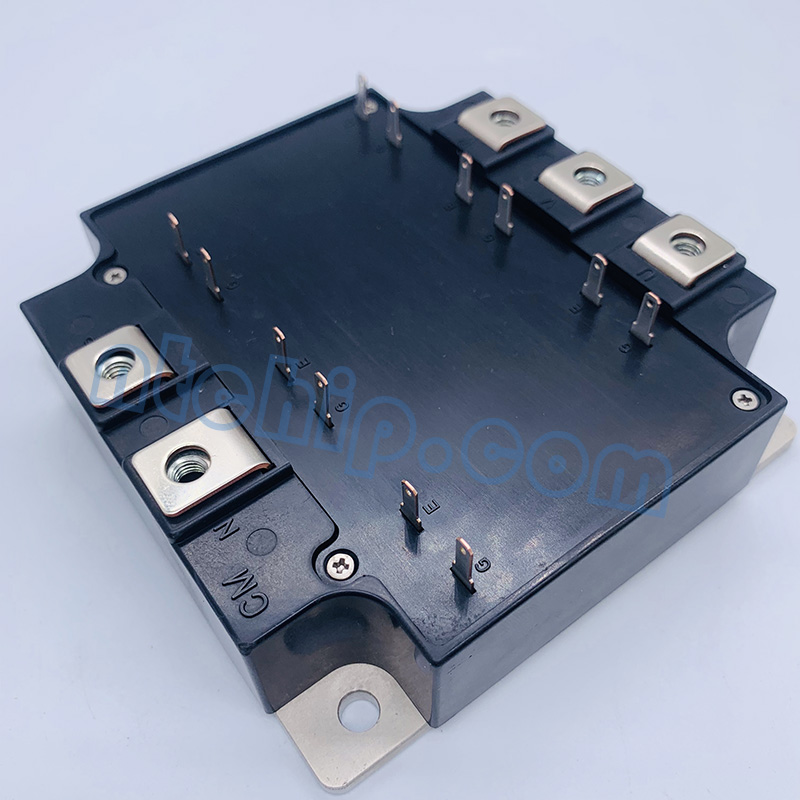

Original CM75TU-24F in Stock
The CM75TU-24F has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to CM75TU-24F could be downloaded from Nantian's platform.
Key Features
Transistor Polarity: N Channel, ensuring compatibility with a variety of circuit designs.
High DC and Continuous Collector Current: Rated at 75A, ideal for high-power applications.
Low Collector-Emitter Saturation Voltage: 1.2kV, contributing to better efficiency and power management.
Power Dissipation: Rated at 450W, providing substantial thermal capacity for sustained operation.
High Maximum Operating and Junction Temperatures: Up to 150°C, allowing for operation in demanding environments.
IGBT Technology: IGBT 5 [Trench Gate], offering enhanced performance compared to traditional designs.
Technical Specifications and Design
Collector Emitter Voltage V(br)ceo: 1.2kV, ensuring robust voltage handling capabilities.
Transistor Case Style: Module, designed for easy integration and durability.
IGBT Termination: Tab, facilitating straightforward and secure connections.
Number of Pins: 17, providing sufficient connections for versatile applications.
Transistor Mounting: Panel, allowing for stable and secure installation.
Product Range: Belongs to Mitsubishi's respected F Series, known for quality and reliability.
Applications and Integration
The Mitsubishi CM75TU-24F IGBT module is perfectly suited for high-power applications requiring efficient voltage and current handling, such as inverter systems, power supplies, and motor drives. Its robust design, coupled with advanced IGBT technology, ensures that it can deliver outstanding performance and reliability. The module's high power dissipation, coupled with its capability to operate at elevated temperatures, makes it an excellent choice for demanding industrial environments. The ease of mounting and standard form factor facilitate seamless integration into existing systems, allowing for both new designs and upgrades to benefit from its superior characteristics.

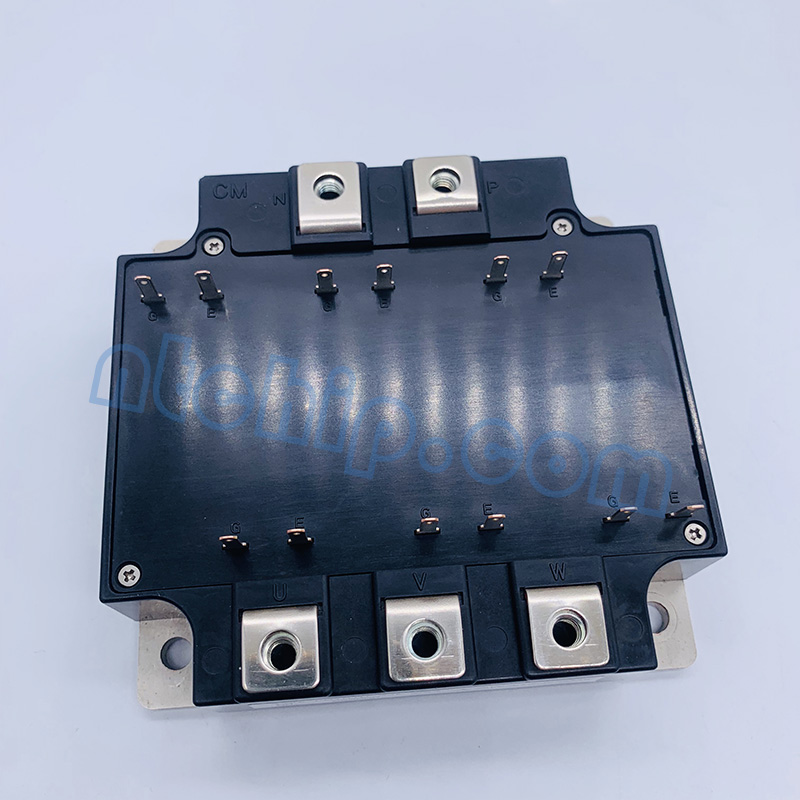

CM75TU-24F Pins
