The Mitsubishi CM1400DU-24NF is a power module that belongs to the IGBT (Insulated Gate Bipolar Transistor) family. These types of modules are typically used in high-power applications such as motor drives, inverters, and power conversion systems.

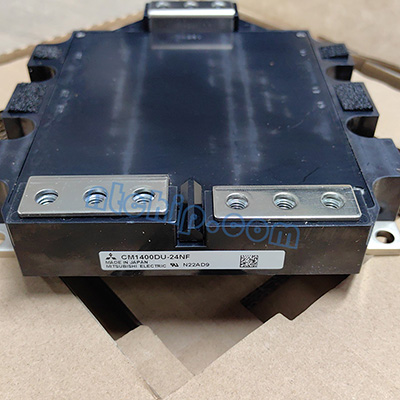

CM1400DU-24NF Product Physical Picture
Here's an overview of the CM1400DU-24NF:
Manufacturer: Mitsubishi Electric
Product Category: IGBT Modules
Configuration: Dual
Voltage Rating DC (Collector-Emitter Breakdown Voltage): 2400 V (Volts)
Current Rating (Collector Current): 1400 A (Amperes)
Package / Case: Module
Key Features
Key features usually include:
High current carrying capability.
Low on-state voltage drop due to conductivity modulation which leads to higher efficiency.
Fast switching characteristics compared to traditional power transistors like BJTs or MOSFETs.
Good thermal management properties allowing it to operate at high temperatures reliably.
These modules are designed for use in applications where there is a need for efficient and reliable control of high currents and voltages — common examples might be renewable energy systems, electric vehicle charging stations, or large industrial motors.
