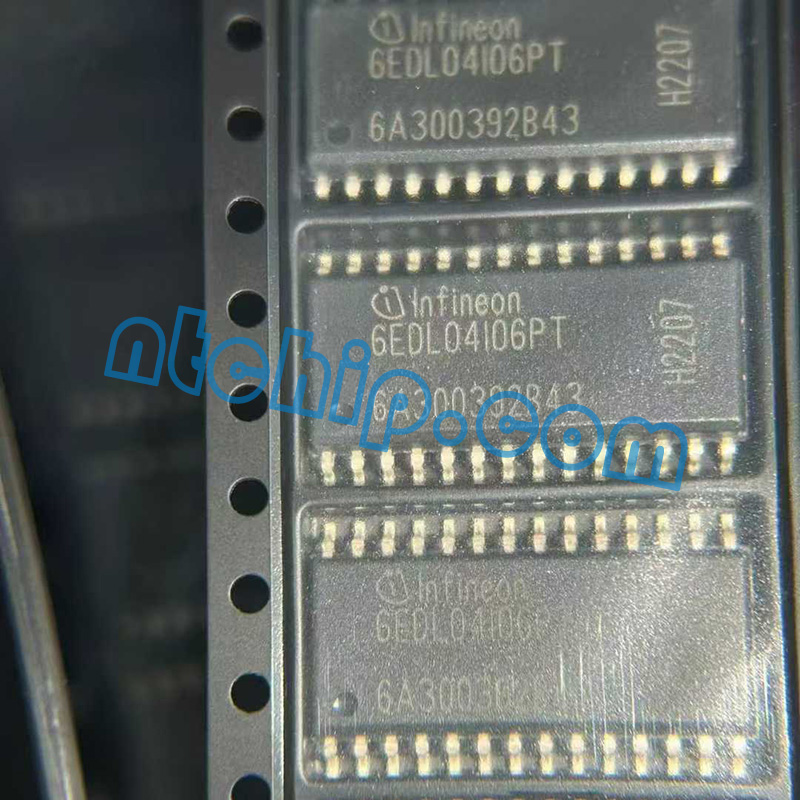

Infineon Technologies 6EDL04I06PT

The Infineon Technologies 6EDL04I06PT is a three-phase gate driver IC designed for high-performance motor control and power management applications. Built on advanced thin-film SOI (Silicon-On-Insulator) technology, this driver offers a maximum blocking voltage of +600 V and ensures reliable operation with enhanced protection features. It includes an integrated ultra-fast bootstrap diode with low RDS(ON) for efficient operation, and its robustness against negative transient voltages (up to -50 V) makes it suitable for demanding environments. Each of the six drivers has separate control circuits, allowing precise and flexible control of three-phase systems.

Equipped with built-in protections such as overcurrent and undervoltage detection, as well as an externally programmable fault-clear delay, the 6EDL04I06PT ensures stable and safe operation under varying conditions. Its CMOS and LSTTL-compatible inputs (negative logic) simplify integration into complex systems, while the signal interlocking mechanism prevents cross-conduction in every phase, ensuring operational reliability. This device is ideal for applications like industrial motor drives, home appliances, and automotive systems.

Nantian Electronics provides a wide stock of 6EDL04I06PT drivers with access to datasheets, pin diagrams, and comprehensive technical resources to support your design needs.
