The PAM8124RHR from Diodes Incorporated is a high-efficiency stereo Class-D audio amplifier designed to deliver strong output power while minimizing heat generation. It supports two channels of amplified audio, providing up to 30 W per channel into an 8 Ω BTL load with a 22 V supply, making it suitable for compact and energy-conscious audio systems. With a wide operating voltage range from 10 V to 26 V and flexible output configurations including both single-ended and bridge-tied load modes, this device adapts easily to various speaker setups in consumer electronics, multimedia devices, and portable sound systems. Its built-in oscillator and single-ended analog inputs simplify design by reducing the need for external components.
To ensure smooth and reliable operation, the PAM8124RHR features selectable fixed-gain settings for easy audio level control and includes protection against thermal overload and short-circuit faults with automatic recovery. It eliminates start-up and shut-down popping noises, delivering a cleaner listening experience. The high-efficiency Class-D architecture removes the need for heat sinks, enabling a compact layout using its 24-pin TSSOP-EP package. Overall, this amplifier offers a balance of power, efficiency, and design simplicity, making it a strong choice for modern stereo audio applications.

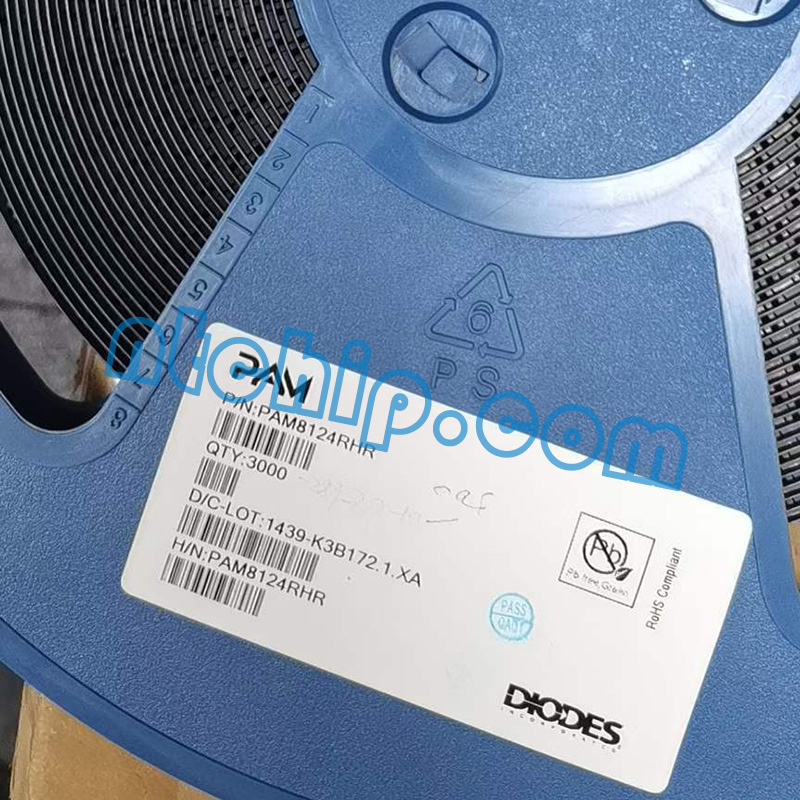

As a professional Diodes Incorporated distributor, Nantian Electronics maintains a large inventory of the PAM8124RHR component. We also provide detailed product parameters, the PAM8124RHR datasheet (PDF), and pin diagram information for convenient download. If you are interested in purchasing this part, please contact us directly. We will offer you our most competitive pricing. Welcome to send your inquiries and place orders anytime!
