CR Micro CRGMP15T120DF1A3

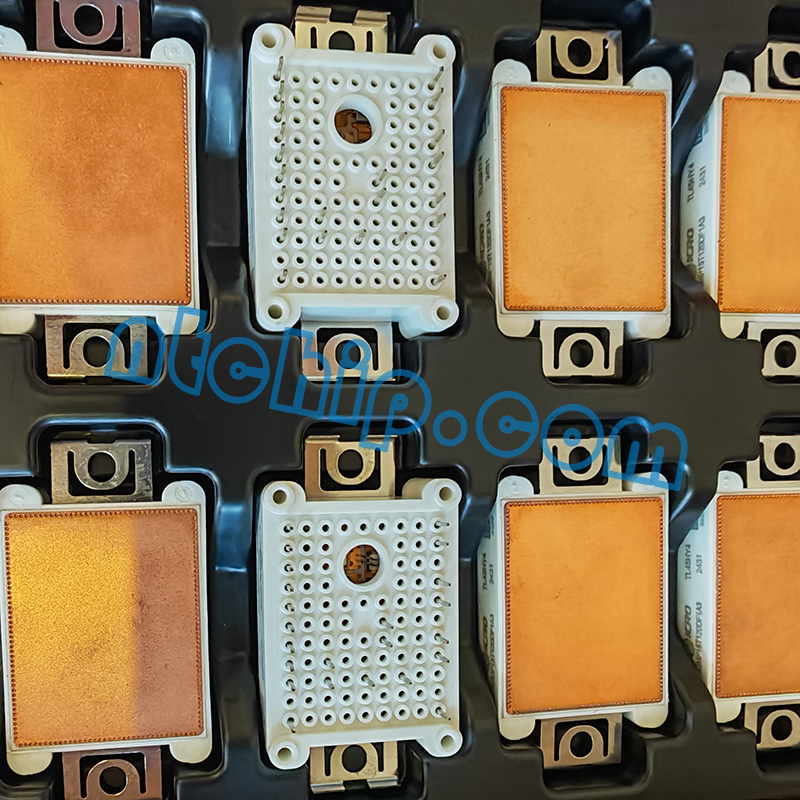

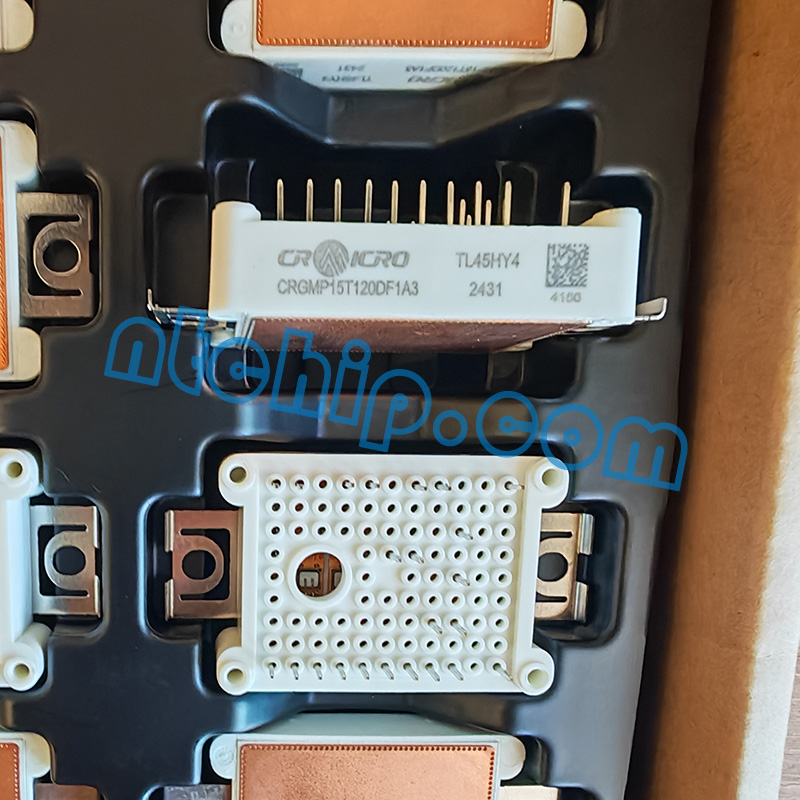

The CRGMP15T120DF1A3 is a high-performance insulated gate bipolar transistor (IGBT) module from China Resources Microelectronics.  Designed for 1200V applications, this module offers a robust current handling capacity of 15A at 100°C, making it suitable for various demanding power electronics systems.  Key features include a low saturation voltage (VCE(sat)) of 1.8V, contributing to high efficiency, and a relatively low gate threshold voltage (VGE(th)) of 6V, which simplifies driving circuitry.  The module's trench field-stop structure (Trench FS III technology) further enhances performance by minimizing conduction losses.

The CRGMP15T120DF1A3's low switching energy (Eoff) of 0.67mJ, combined with a forward voltage drop (VF) of 2.15V, allows for rapid switching and reduced energy consumption.  Nantian Electronics, a trusted distributor of CR Micro products, maintains a substantial inventory of this component, ensuring quick delivery to meet your project needs.  They also offer a comprehensive selection of other CR Micro components, providing a one-stop solution for your power electronics requirements.
