Broadcom Limited ACPL-M60L-500E

The ACPL-M60L is an optically coupled gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 15 kV/μs at 3.3V operation.

Original ACPL-M60L-500E in stock

As a professional Broadcom distributor, Nantian Electronic has a large number of ACPL-M60L-500E in stock. We also provide ACPL-M60L-500E parameters, ACPL-M60L-500E Datasheet PDF and pin diagram instructions for download.

60R010XPR Dimensions

The size information of 60R010XPR is as follows:

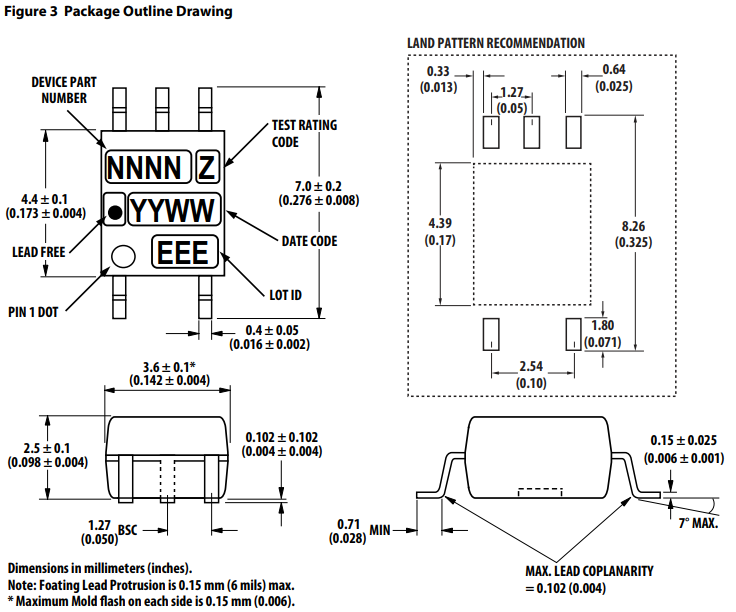

60R010XPR Outline and Dimensions

Features

• Dual voltage operation (3.3V/5V)

• 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000V (3.3V operating voltage)

• High speed: 15 MBd typical

• LVTTL/LVCMOS compatible

• Low input current capability: 5 mA

• Guaranteed AC and DC performance over temperature: –40°C to +100°C

• Safety approvals; UL, CSA, IEC/EN/DIN EN 60747-5-5 (Pending)

• Surface mountable  Very small, low profile JEDEC Registered package outline

Applications

• Isolated line receiver

• Computer-peripheral interfaces

• Microprocessor system interfaces

• Digital isolation for A/D, D/A conversion

• Switching power supply

• Instrument input/output isolation

• Ground loop elimination

• Pulse transformer replacement  Field buses
