The BMM150, a state-of-the-art product from Bosch Sensortec, is a three-axis magnetic field sensor designed to capture magnetic signals in various applications. Its ultra-compact design, featuring a footprint of only 1.56 x 1.56 mm² and a 0.6 mm height, enables easy integration into a variety of systems. The sensor supports a multitude of digital interfaces, including SPI (both 4-wire and 3-wire) and I²C, proving its flexibility in diverse environments. Low voltage operation, a key advantage of this sensor, allows it to operate efficiently in a VDD supply voltage range between 1.62V and 3.6V, and a VDDIO interface voltage range from 1.2V to 3.6V.
Boasting flexible functionality, the BMM150 offers a typical magnetic field range of ±1300μT for the x and y-axes, and ±2500μT for the z-axis, all while achieving a magnetic field resolution of around 0.3μT. Furthermore, this sensor includes an on-chip interrupt controller, which generates interrupt signals for new data and magnetic low/high threshold detection. Its ultra-low power consumption around 170μA at 10Hz in its low-power preset mode ensures energy conservation, making it an efficient component for system power management. The BMM150 can be deployed in a wide range of applications, including tilt-compensated electronic compasses, in-door navigation, gyroscope calibration in mobile devices, and gaming, with a robust operating range of -40°C to +85°C.

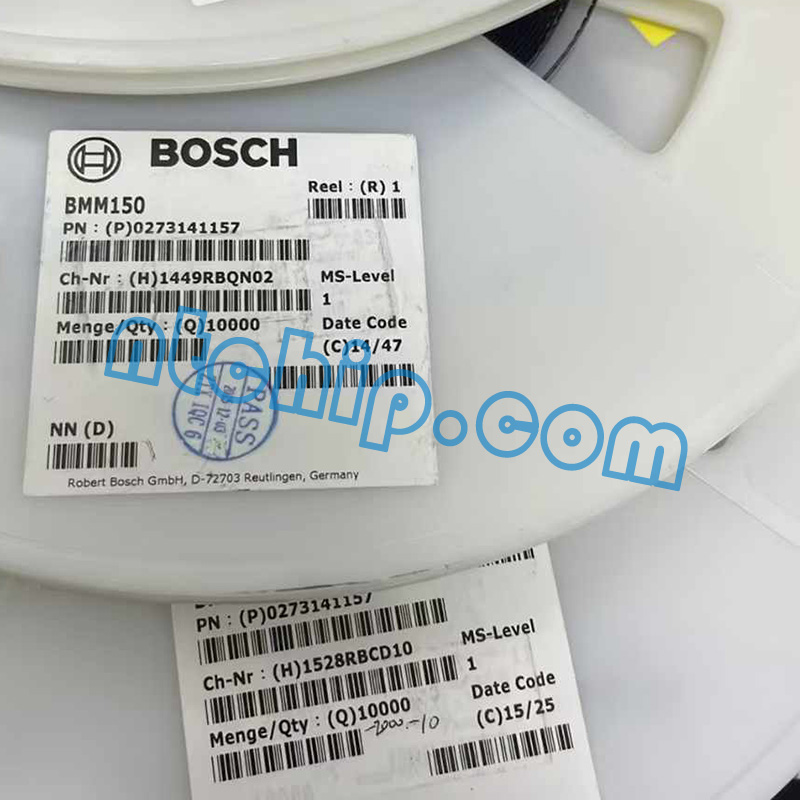

Bosch Sensortec BMM150 New and Original Reel Label
Nantian Electronics, a reliable distributor of Bosch Sensortec products, provides a large stock of BMM150 units as well as comprehensive resources such as the product datasheet and pin diagram instructions.
