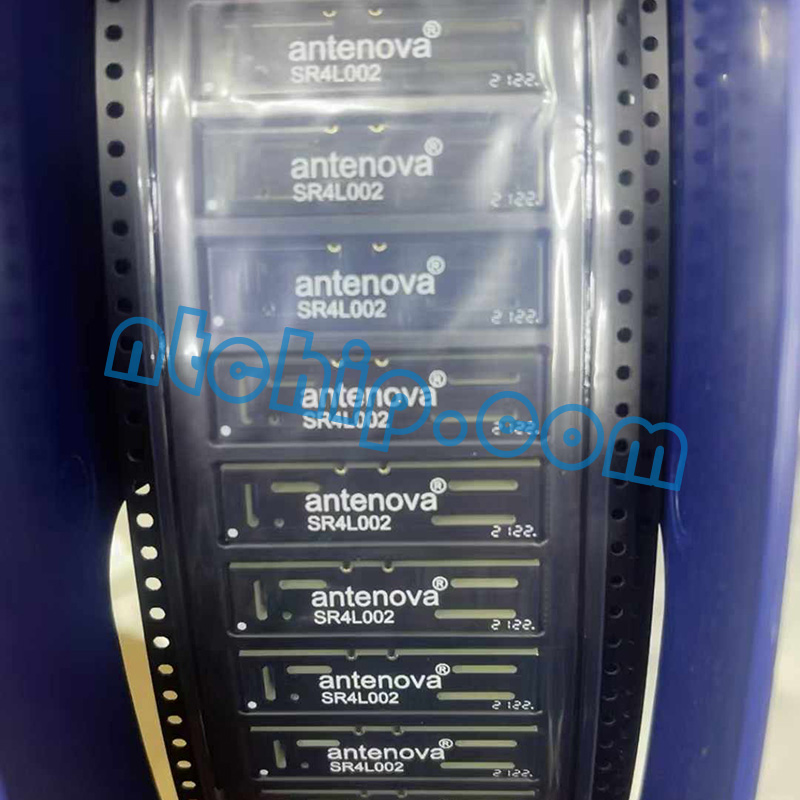

The SR4L002 by Antenova is a cutting-edge antenna specially designed to enhance 4G LTE applications, including MIMO systems. The broad coverage of frequency bands, spanning from LTE 700, GSM850, GSM900, DCS1800, PCS1900, to WCDMA2100, LTE B7 (2500-2690 MHz), and LTE B40 (2300 – 2400 MHZ), ensures that the antenna can handle an expansive range of wireless communications. Its small design - it's touted as the smallest internal LTE antenna - enhances its integration possibilities while its low profile and innovative shape contribute to aesthetic and practical device designs. Manufactured for ease of assembly, the antenna is compatible with Surface Mount Device (SMD) mounting and is made further accessible by being supplied on Tape and Reel.

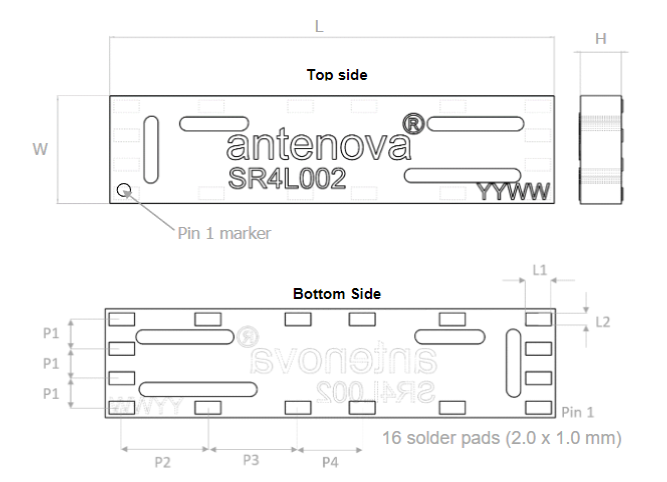

Antenova SR4L002 Package Dimensions:
Antenova's SR4L002 utilises the ground plane on the host PCB to radiate effectively, with only a small clearance zone beneath the antenna itself required. In terms of optimisation, an external matching circuit is used, enabling the ideal adaptation of this versatile antenna within a device to the desired frequency bands. Users will find this antenna perfect for enhancing the wireless capabilities of 4G single and MIMO antenna systems. Given the compact design and robust performance, applied uses span from 4G MiFi routers, Femto/Pico base stations, portable and network devices, to remote monitoring and wearable devices.

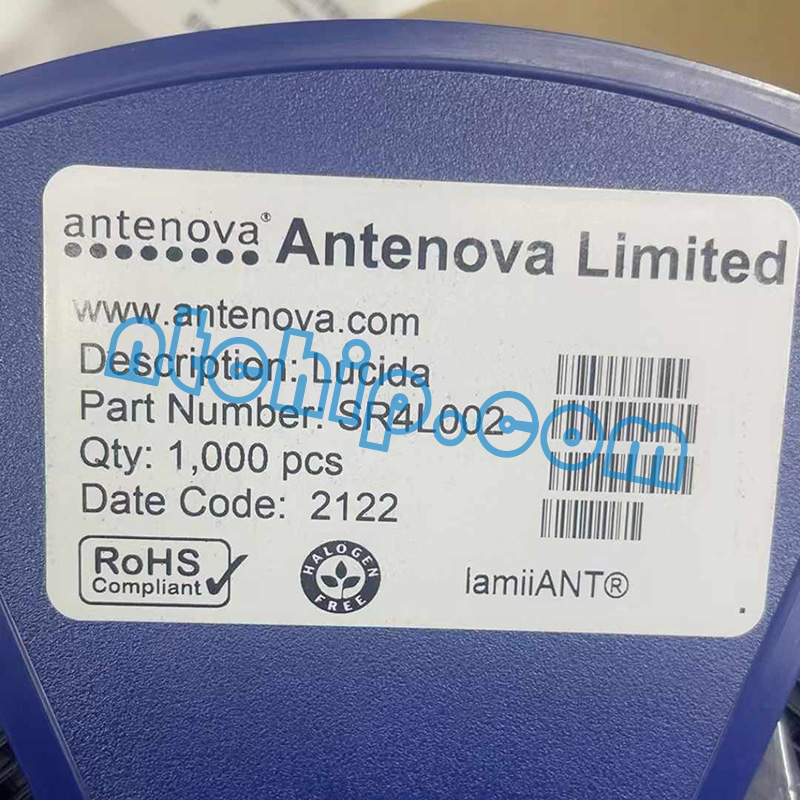

Antenova SR4L002 Original Reel Label
Nantian Electronics, as a leading distributor of Antenova, provides a significant stock of SR4L002, along with easily downloadable parameters, datasheet PDFs, and pin diagram instructions for the product.

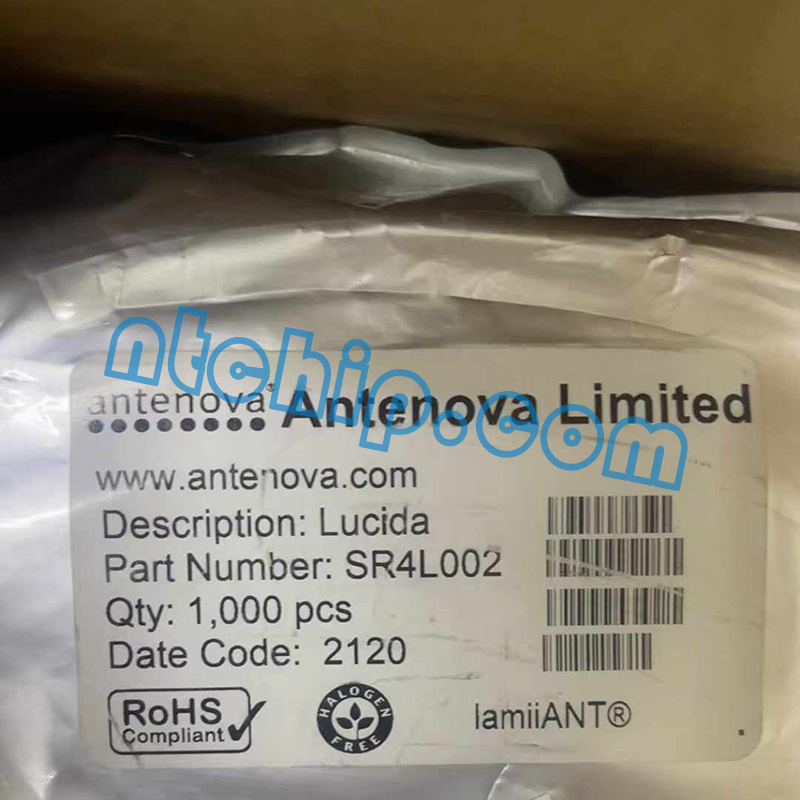

Antenova SR4L002 Package Original Label
