What are the key features of the EPM1270T144I5N?

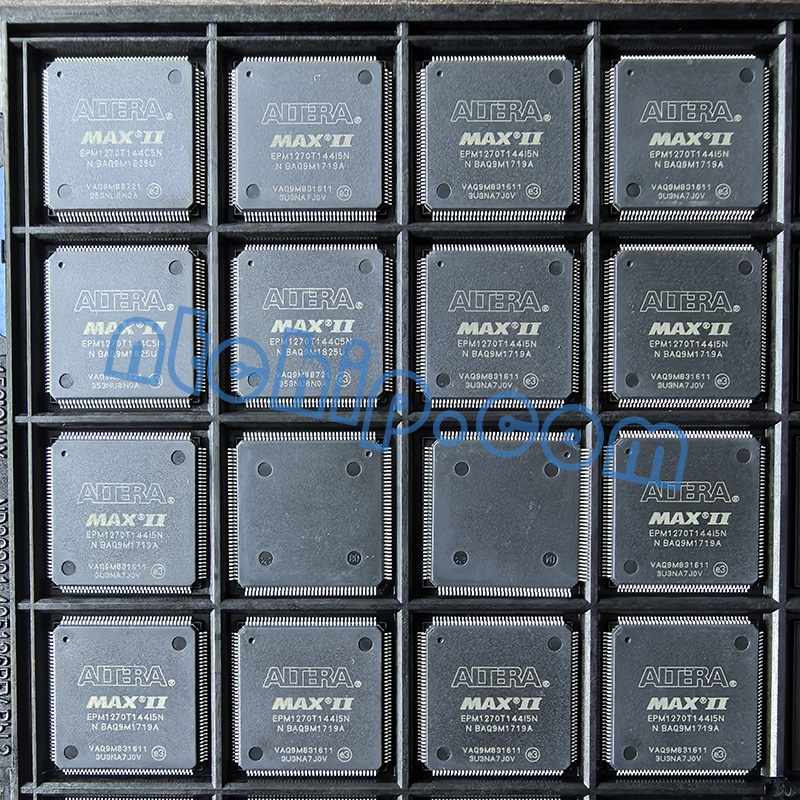

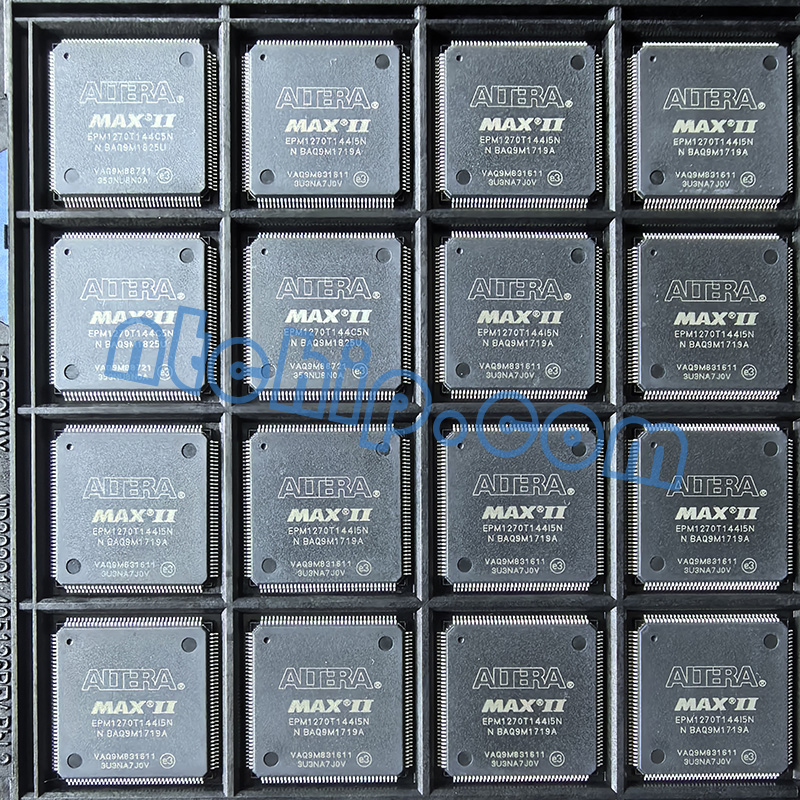

The EPM1270T144I5N is a Complex Programmable Logic Device (CPLD) from Intel’s (formerly Altera) MAX II family that combines flexibility, speed, and low power operation. It includes 1,270 logic elements and 980 macrocells, supports up to 116 user-configurable I/O pins in a 144-pin TQFP package, and operates over a wide voltage range (2.5 V–3.3 V). The device offers fast propagation delays (around 6.2 ns) and can be programmed in-system using standard tools, making it suitable for a variety of digital logic tasks.
What is the EPM1270T144I5N used for?
This CPLD is used to implement custom digital logic in hardware, allowing designers to create state machines, glue logic, timing control, and interface functions that would otherwise require many discrete components. It is useful in applications such as industrial automation, communication systems, consumer electronics, and any embedded design that needs reliable, reconfigurable logic with fast response times.
Are there alternative parts available?
Yes. Within Intel’s product lineup, similar devices like the EPM1270T144A5N or EPM240T100C5N offer comparable functionality with different logic densities or package options and may be more suitable depending on your needs. You can also consider CPLDs from other manufacturers (e.g., Lattice or Microchip) with similar logic capacity and I/O counts as functional alternatives, though differences in architecture and toolchains should be checked before swapping.
