The HCPL-5531 from Avago Technologies (now part of Broadcom) is a robust optocoupler designed to meet the stringent requirements of military and aerospace applications. This device is dual marked with both the device part number and the Defense Logistics Agency (DLA) drawing number, ensuring traceability and compliance with MIL-PRF-38534 standards. It is available in five hermetically sealed package configurations, which guarantee performance across a wide military temperature range from -55°C to +125°C. The HCPL-5531 is not only reliable but also offers high-speed data transmission capabilities, typically up to 400 kBit/s, and a bandwidth of 9 MHz, making it suitable for a variety of demanding environments.

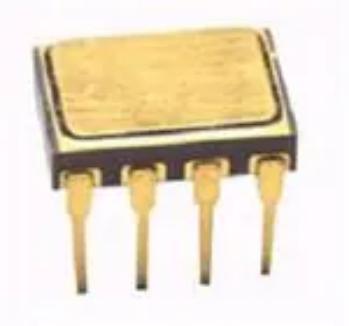

Images are for reference only See Product Specifications
Key features of the HCPL-5531 include an open collector output and a flexible VCC range from 2 to 18 volts, along with a high withstand test voltage of 1500 Vdc, ensuring excellent isolation and safety. Its high radiation immunity makes it an ideal choice for environments exposed to high levels of ionizing radiation. The device is functionally compatible with other industry standards like the 6N135 and 6N136, as well as HCPL-2530/2531, providing ease of integration into existing systems.
Nantian Electronics, as a professional distributor of Avago Technologies (Broadcom), offers extensive stock of HCPL-5531 units along with comprehensive support including datasheets and pin diagrams for download. For those interested in purchasing, we provide competitive pricing and expert assistance.
