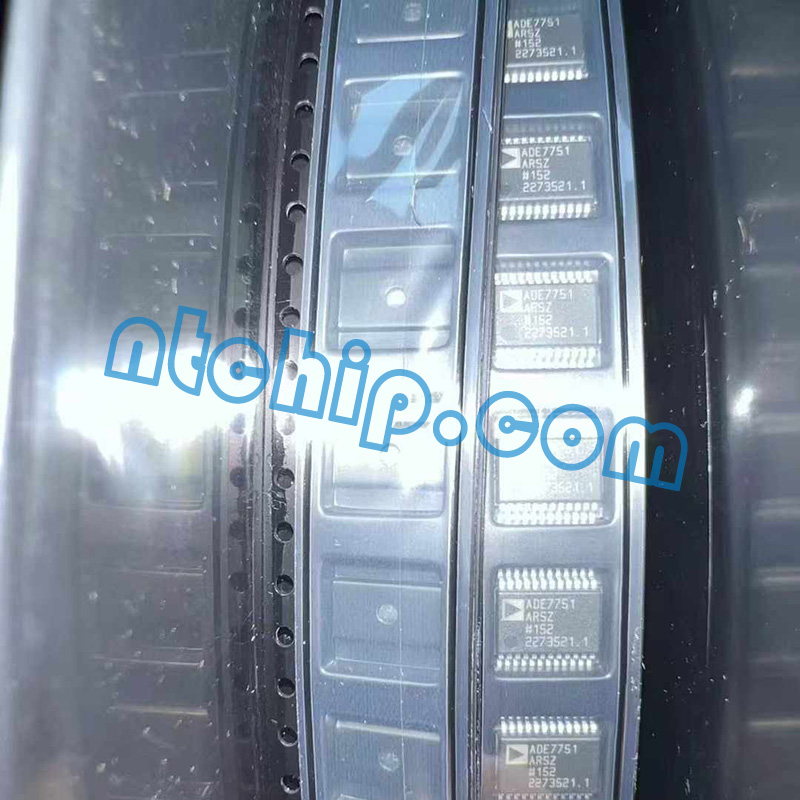

The ADE7751ARSZRL, crafted by renowned manufacturer Analog Devices Inc., is a high-accuracy electrical energy measurement IC. Engineered for optimal function with 2-wire distribution systems, it surpasses accuracy requirements as stated in the IEC1036 standard. The ADE7751ARSZRL's construction utilizes analog circuitry solely in the ADCs and reference circuit. All other signal processing, including multiplication and filtering, is performed in the digital domain. This design choice confers superior stability and accuracy, ensuring top performance despite varying environmental conditions and over time.

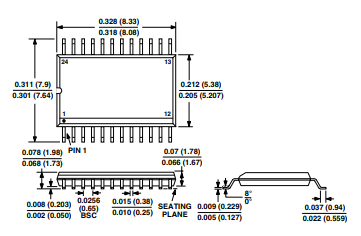

Analog Devices Inc ADE7751ARSZRL Package Dimensions:
Prominently, the ADE7751ARSZRL incorporates a unique fault detection scheme that can identify inconsistencies and permit continued accurate billing during a fault event. It accomplishes this by continuously monitoring both phase and neutral currents, alerting any divergence exceeding 12.5% and using the larger of the two currents for billing. Additionally, the ADE7751ARSZRL offers average real power information on its low-frequency outputs F1 and F2, which can be used to drive an electromechanical counter or connect with an MCU. Its CF logic output provides instantaneous real power information designed for calibration purposes. Moreover, it includes features for power supply monitoring, internal phase matching, and anticreep protection. The ADE7751ARSZRL comes in 24-lead DIP and SSOP packages.

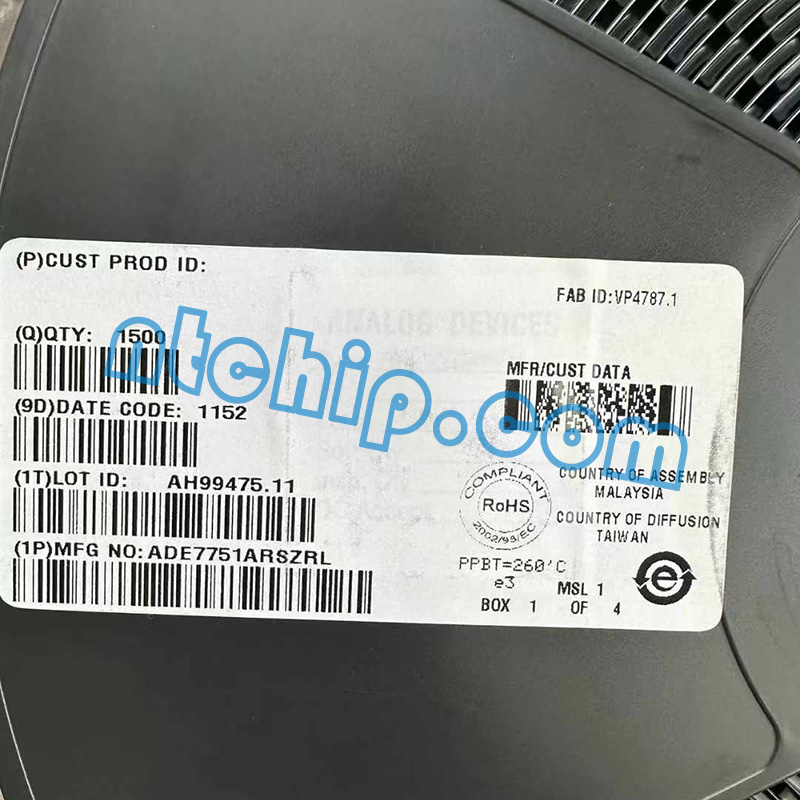

Analog Devices Inc. ADE7751ARSZRL Package Original Label
Nantian Electronics, as a professional distributor of Analog Devices Inc., keeps ample stock and provides comprehensive details, datasheets, and pin diagram instructions for this model.
